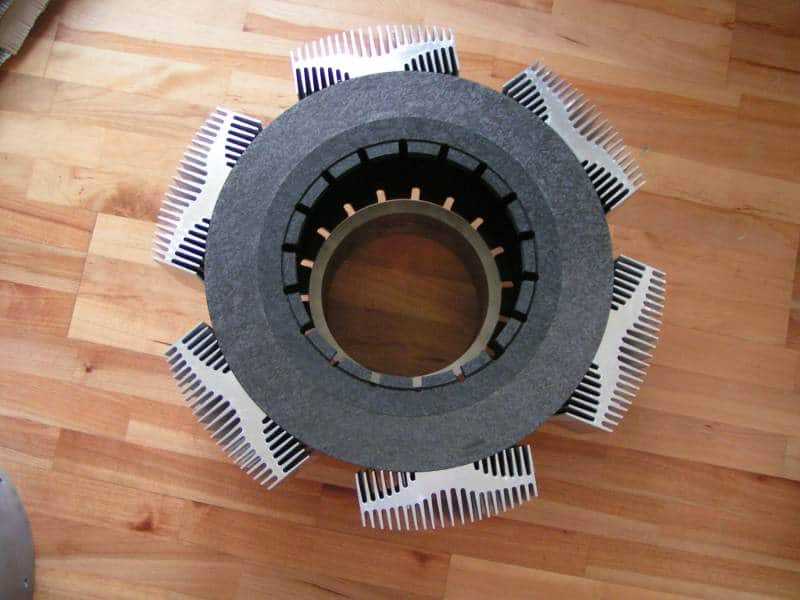

Magura Napisano Maj 1, 2009 Autor Share #45 Napisano Maj 1, 2009 To get the heat from the active devices, to the heatsink assembly, either a lot of metal, or carbon seemed to be the options. At this point it gets to become an issue when talking weight. The 35kg mark has been passed, and the box is neither complete, nor has any electronic component been mounted.So, the solution ended up being carbon. Honeywell makes some real nice stuff for this purpose, which is 100% carbon, but with a fiber structure.This material allows the use as a structural part, which is pretty nifty in this case.Pic shows the parts so far, and a test piece of carbon.Magura Link to comment Podeli na ovim sajtovima More sharing options...

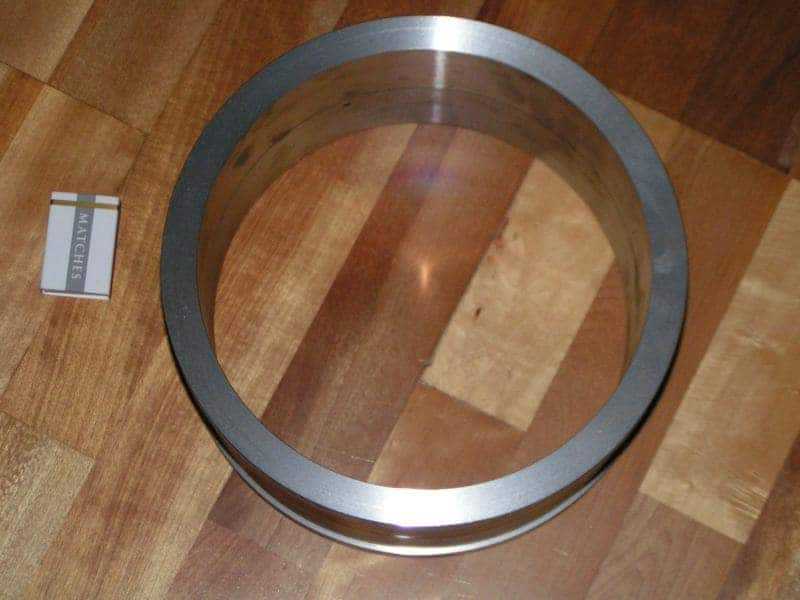

Magura Napisano Maj 2, 2009 Autor Share #46 Napisano Maj 2, 2009 Now perhaps a foot would be nice, no?To get rid of the transformer, and shielding it as well, I made a hollow foot big enough to contain it. This also allows for an AC inlet and the on/off contactor. So no mains in the box for the amp.Magura Link to comment Podeli na ovim sajtovima More sharing options...

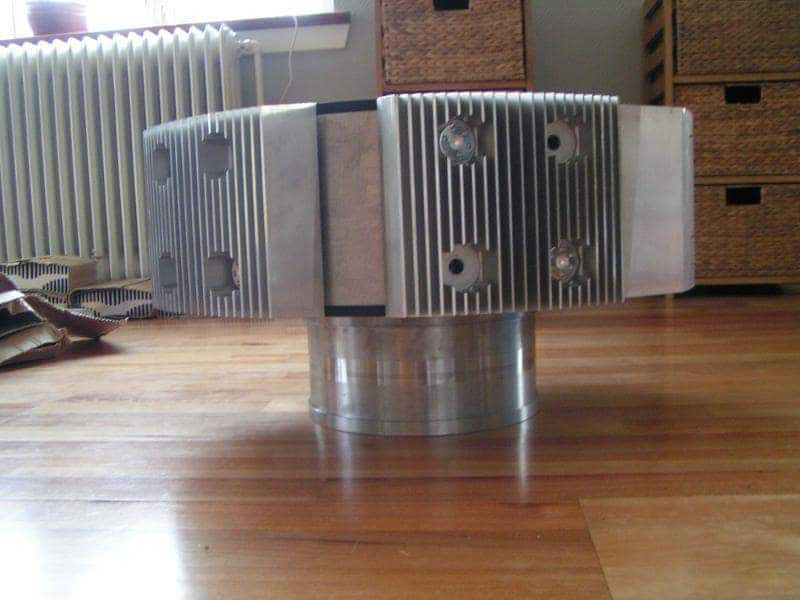

Magura Napisano Maj 2, 2009 Autor Share #47 Napisano Maj 2, 2009 The box assembled prior to surface treatment. Seems like I've been lucky so far, everything fits Magura Link to comment Podeli na ovim sajtovima More sharing options...

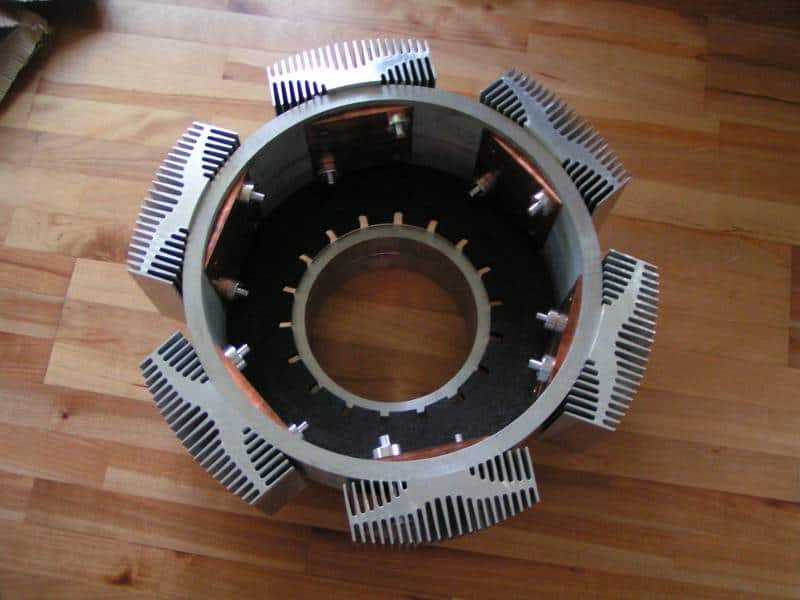

Magura Napisano Maj 2, 2009 Autor Share #48 Napisano Maj 2, 2009 And how it looks inside so far.Magura Link to comment Podeli na ovim sajtovima More sharing options...
Magura Napisano Maj 4, 2009 Autor Share #49 Napisano Maj 4, 2009 And here you got a pic of the main persons involved in this project, including their significant others Behind: Steenoe and his Mrs.Left to right: Mr. and Mrs. Cviller, Mr. and Mrs. MaguraMagura Link to comment Podeli na ovim sajtovima More sharing options...
Zen Mod Napisano Maj 4, 2009 Share #50 Napisano Maj 4, 2009 And here you got a pic of the main persons involved in this project, including their significant others Behind: Steenoe and his Mrs.Left to right: Mr. and Mrs. Cviller, Mr. and Mrs. MaguraMagura where is pic of Drek ? Link to comment Podeli na ovim sajtovima More sharing options...
Magura Napisano Maj 4, 2009 Autor Share #51 Napisano Maj 4, 2009 where is pic of Drek ? Steenoe holding a DrekMagura:) Link to comment Podeli na ovim sajtovima More sharing options...

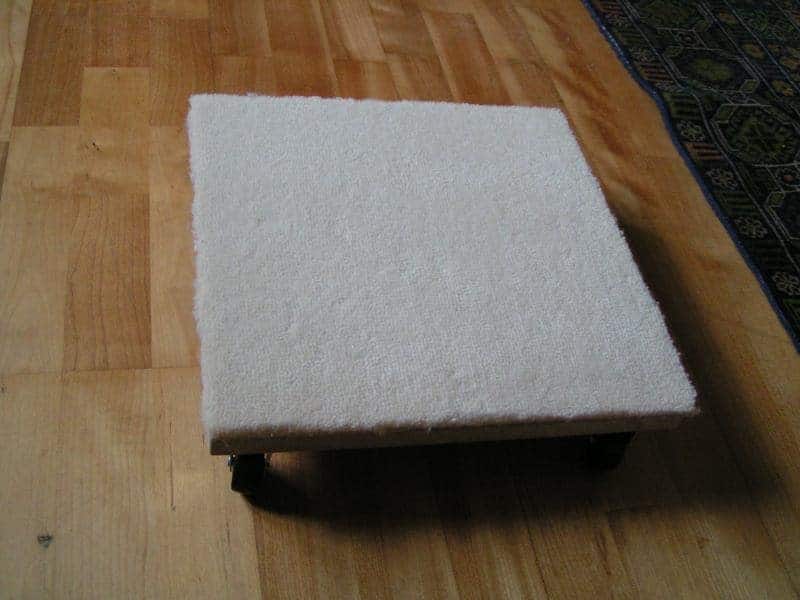

Magura Napisano Maj 4, 2009 Autor Share #52 Napisano Maj 4, 2009 The software upgraded amp transport Magura:) Link to comment Podeli na ovim sajtovima More sharing options...
Zen Mod Napisano Maj 4, 2009 Share #53 Napisano Maj 4, 2009 yeah ...... it's really soft now Link to comment Podeli na ovim sajtovima More sharing options...

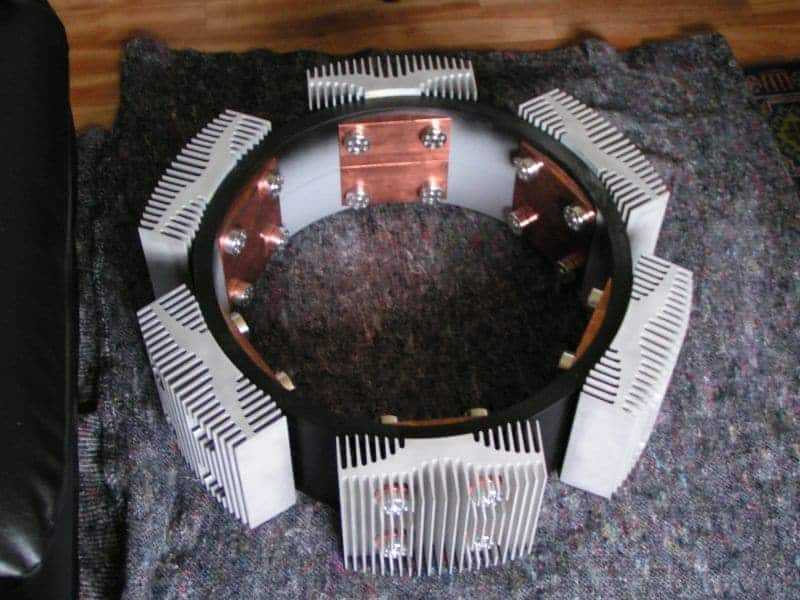

Magura Napisano Maj 4, 2009 Autor Share #54 Napisano Maj 4, 2009 So, this is as far as I got last week (before making the roller-boards). A little paint, and a lot of assembling.Magura Link to comment Podeli na ovim sajtovima More sharing options...

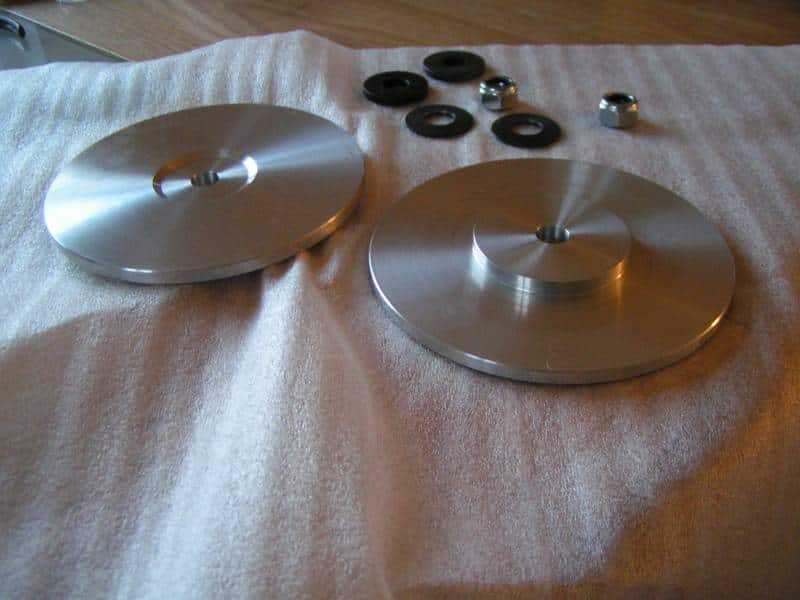

Magura Napisano Maj 6, 2009 Autor Share #55 Napisano Maj 6, 2009 Today I got around to making the mounting hardware for the transformers.Magura Link to comment Podeli na ovim sajtovima More sharing options...
steenoe Napisano Maj 7, 2009 Share #56 Napisano Maj 7, 2009 Hi guysNice pic's magura and a nice forum to post them in Where is the Pass department and who is that distinguished gentleman on the pic in post above? Link to comment Podeli na ovim sajtovima More sharing options...
Mikorist Napisano Maj 7, 2009 Share #57 Napisano Maj 7, 2009 Hi guysNice pic's magura and a nice forum to post them in Where is the Pass department and who is that distinguished gentleman on the pic in post above? Welcome Link to comment Podeli na ovim sajtovima More sharing options...
Zen Mod Napisano Maj 7, 2009 Share #58 Napisano Maj 7, 2009 Hi guysNice pic's magura and a nice forum to post them in Where is the Pass department and who is that distinguished gentleman on the pic in post above? welcome Lucky Luke believe or not , we don't have dedicated Pass board . Link to comment Podeli na ovim sajtovima More sharing options...
steenoe Napisano Maj 7, 2009 Share #59 Napisano Maj 7, 2009 Thanks for the welcome Magura, I am really thrilled for you, seeing that those amps a getting finished. I know you put countless hours into making them and finding all those fancy materials. Those amps are surely the most extreme DIY effort on the planet. Cant wait to hear, if the sound is just as great as the looks Link to comment Podeli na ovim sajtovima More sharing options...
Zen Mod Napisano Maj 7, 2009 Share #60 Napisano Maj 7, 2009 ......... if the sound is just as great as the looks can't be - with that sissy schematic Link to comment Podeli na ovim sajtovima More sharing options...
steenoe Napisano Maj 7, 2009 Share #61 Napisano Maj 7, 2009 He-he.... This is funny forum, having to click on all those buttons to see what happens. Cant beleive I managed to register and get a post done Much more fun in Srpski Link to comment Podeli na ovim sajtovima More sharing options...
Magura Napisano Maj 7, 2009 Autor Share #62 Napisano Maj 7, 2009 Thanks for the welcome Magura, I am really thrilled for you, seeing that those amps a getting finished. I know you put countless hours into making them and finding all those fancy materials. Those amps are surely the most extreme DIY effort on the planet. Cant wait to hear, if the sound is just as great as the looks Welcome Steen, I wondered what you were waiting for ...and thanks. Sound should not be much behind the design Magura Link to comment Podeli na ovim sajtovima More sharing options...
stein Napisano Maj 7, 2009 Share #63 Napisano Maj 7, 2009 ...and thanks. Sound should not be much behind the design Magura Hopefully, the relation between the outlook and the sound will be as it's with mine. It sounds much better than it looks. Since your amp already looks fantastic (I can see that from what you do) it should be ... hmph... Lemme think... fantastic, fantastic..er ... well, whatever would come next Link to comment Podeli na ovim sajtovima More sharing options...
Magura Napisano Maj 7, 2009 Autor Share #64 Napisano Maj 7, 2009 Hopefully, the relation between the outlook and the sound will be as it's with mine. It sounds much better than it looks. Since your amp already looks fantastic (I can see that from what you do) it should be ... hmph... Lemme think... fantastic, fantastic..er ... well, whatever would come next The odds that it sounds fairly good, are not too bad. I have had a much simpler prototype up running, based on the same approach, which I was quite impressed with. The prototype was pretty much an inductor loaded F3, plus-minus some details. This circuit should beat the pants off the prototype. (I hope )Magura Link to comment Podeli na ovim sajtovima More sharing options...

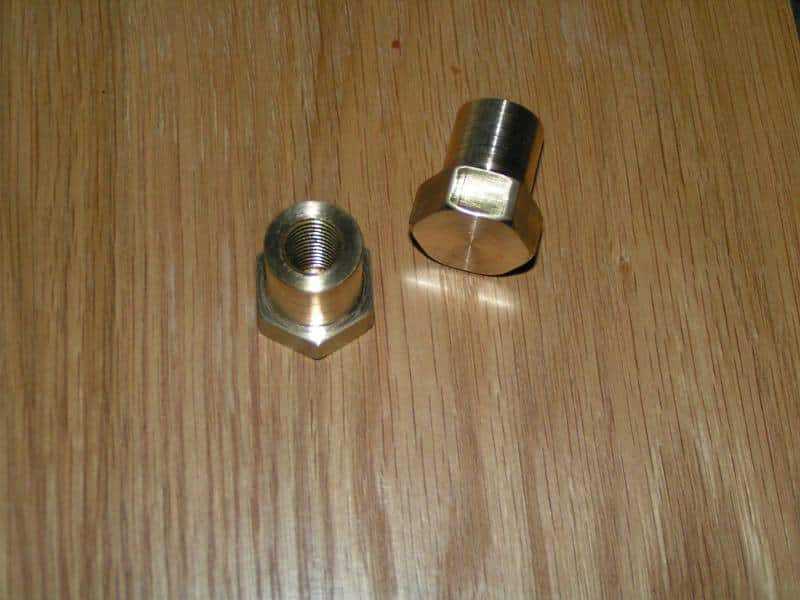

Magura Napisano Maj 7, 2009 Autor Share #65 Napisano Maj 7, 2009 The plain lock-nut for the transformer mounting hardware, kept giving me bad dreams, so a respectable solution was made in brass today Magura Link to comment Podeli na ovim sajtovima More sharing options...
stein Napisano Maj 8, 2009 Share #66 Napisano Maj 8, 2009 I envy you, you seem to get enough time to fiddle with such details I can't even get enough time to think about... Beatiful details, though... To make myself clear, have to drill 8 holes in a copper rod and make M3 thread inside the holes, mount the output devices and finish my Aleph 5. Doing it since September last year... Link to comment Podeli na ovim sajtovima More sharing options...
