DIY Tannoy Westminster Royal

[Eci]

Ovaj deo takodje nije na crtežima, ubačen je u toku rada, sprečava vibriranje dela W. Radi se o uporniku koji se nalazi izmedju W i L, trapeznog je oblika.

This part is also not on the drawings, it was inserted during the building process, prevents the vibration of part W. It is a trapezoidal shape vertical part located between parts W and L.

[Eci]

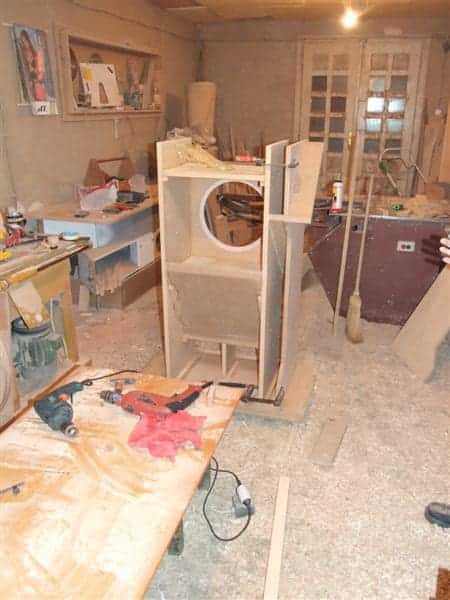

Pogled od nazadRear View

[Eci]

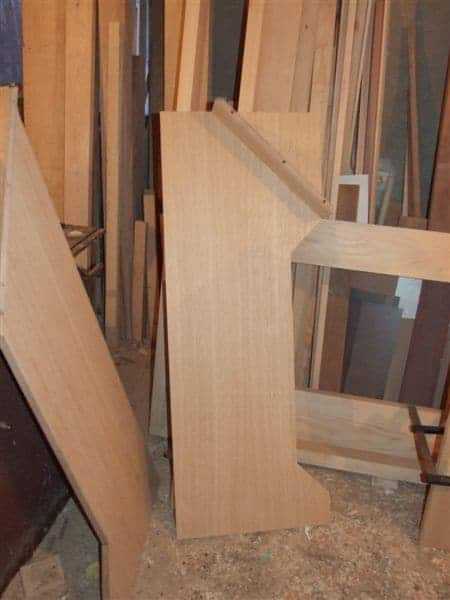

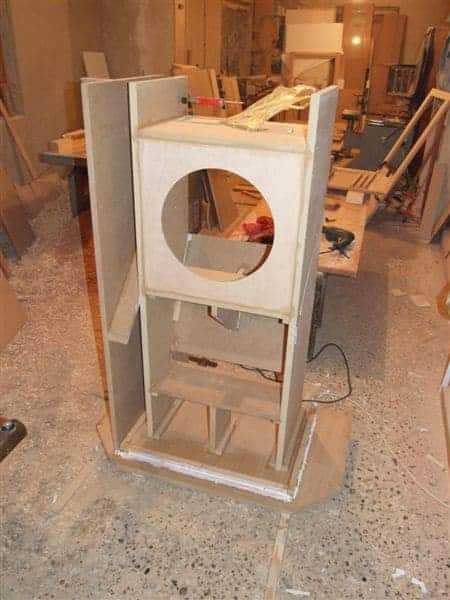

Spojeni delovi C i B Connected Parts C and B

[Eci]

Dodat i deo FPart F is also added

[Eci]

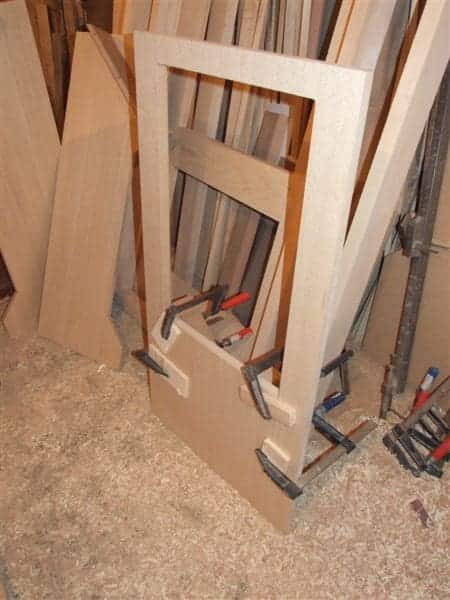

Spajanje dela H sa delovima OConnecting the part H with O parts

[Eci]

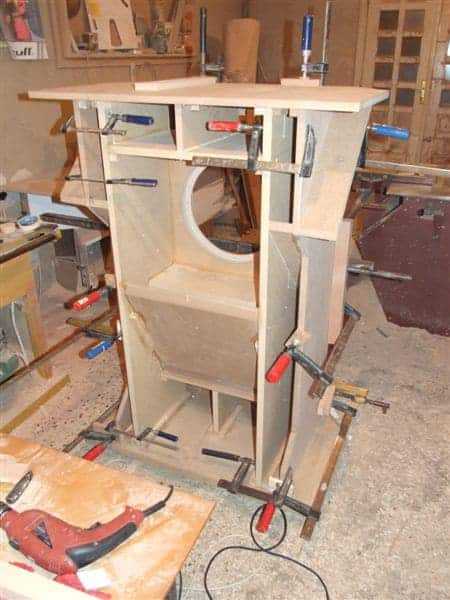

Pogled od nazad Rear View

[Eci]

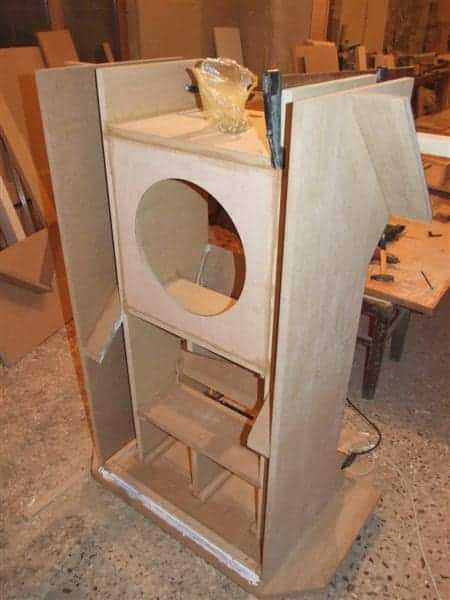

Bez stegaWithout clamps

[Eci]

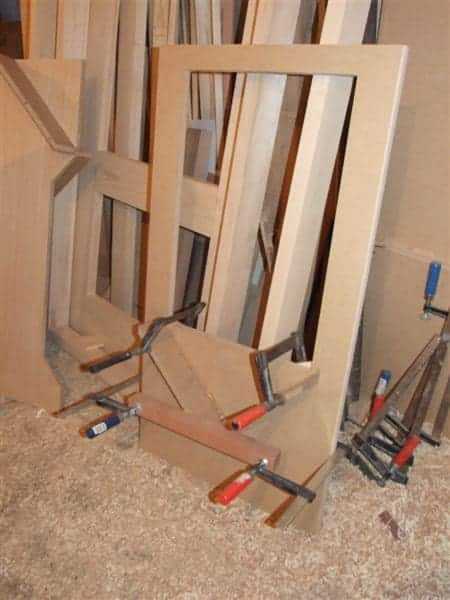

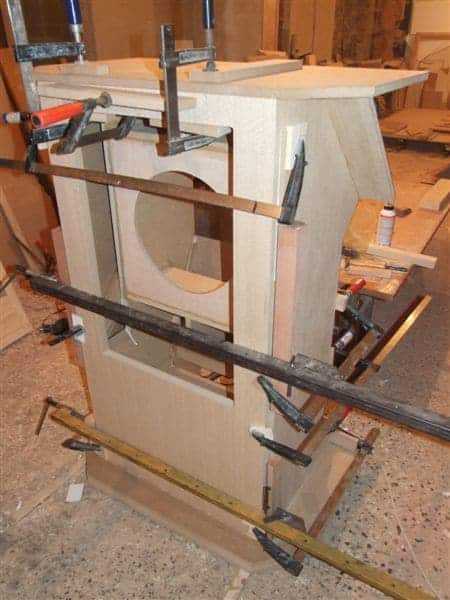

Spajanje dela C sa delovima R i DConnecting of part C with parts R and D

[Eci]

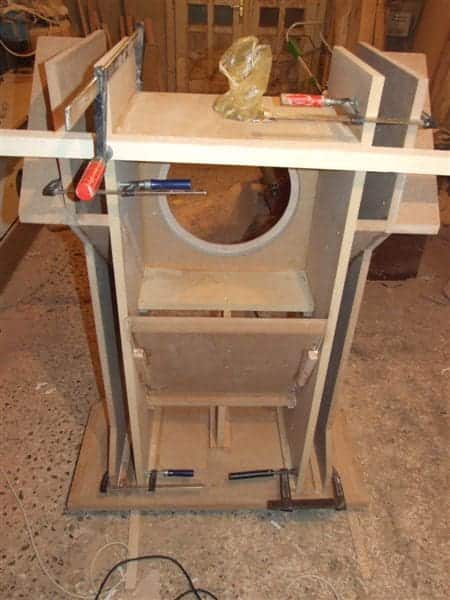

Pogled od nazadRear View

[Eci]

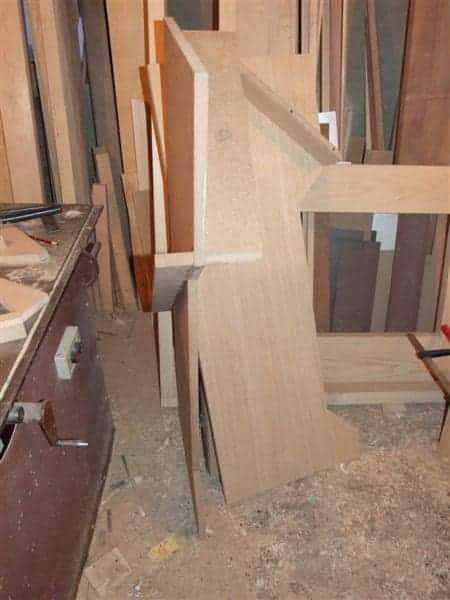

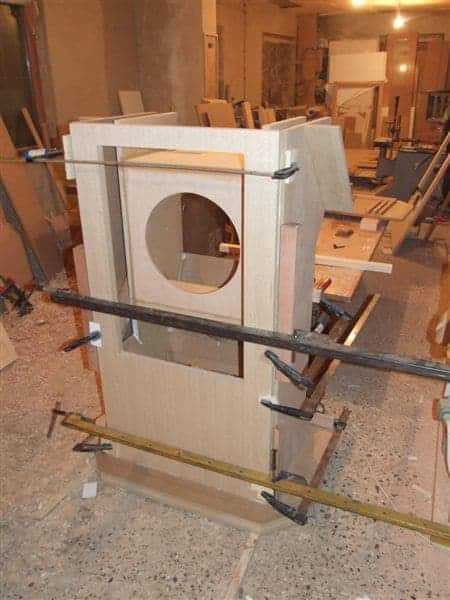

Pa deo C na R i D sa suprotne strane

Connecting of part C on parts R and D from the opposite side

[Eci]

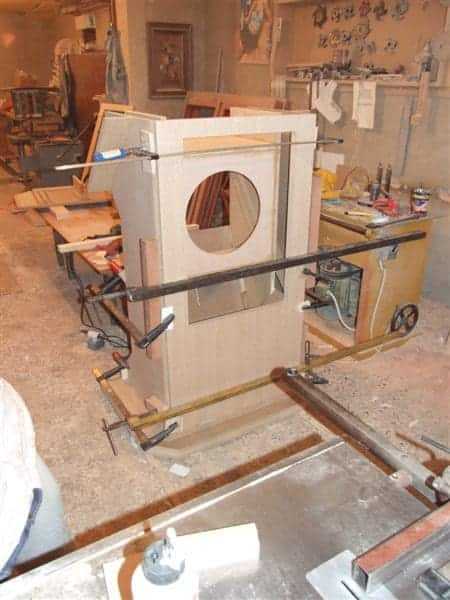

Iz drugog uglaFrom another angle

[Eci]

Pogled od nazadRear View

[Eci]

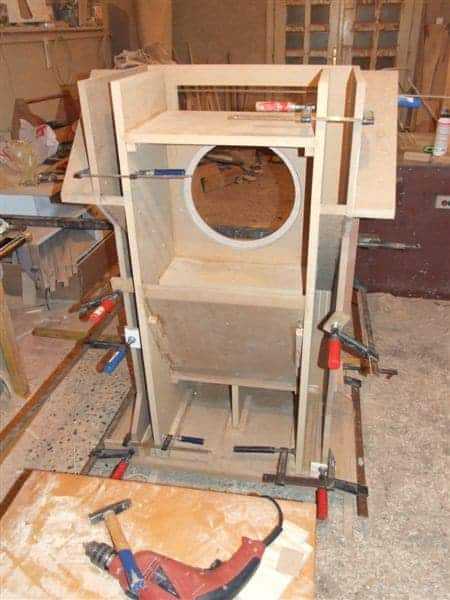

Dodavanje dela HAdding of the part H

[Eci]

Iz drugog uglaFrom another angle

[Eci]

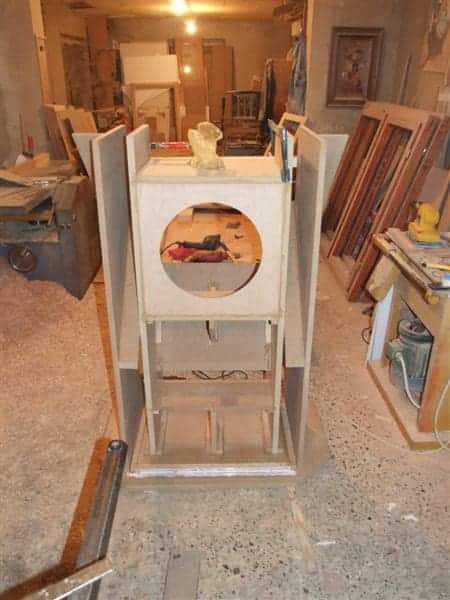

Pogled od nazad Rear View

[Eci]

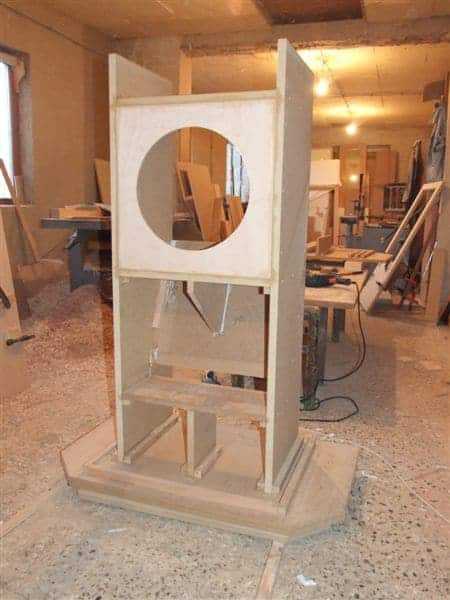

Dodavanje dela TAdding of the part T

[Eci]

Pogled od nazad

Rear View

[Eci]

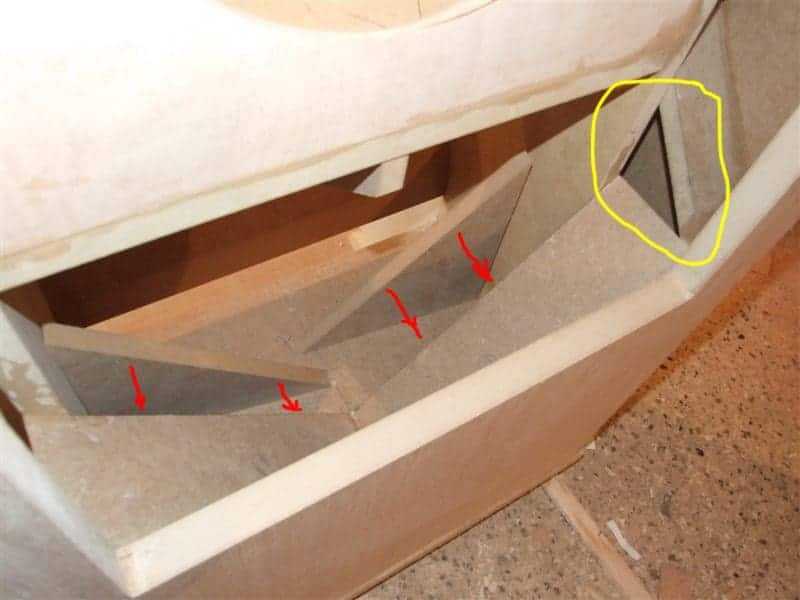

Sledeći delovi nisu na crtežima, ubacuju se u toku rada. Radi se o formiranju tunela, postoje otvori izmedju delova O i dela P, zatvaraju se sa trouglovima ( formiraju se stranice levog i desnog tunela ). Označeno na slici sa crvenim strelicama. Takodje postoje otvori ( levo i desno ) izmedju delova O, D, H i F - to je na slici zaokruženo žutom bojom, koji se zatvaraju delom koji je na sledećoj slici ( trapez čija je donja ivica oborena na 45*, ta ivica naleže na O )

The following parts are not on the drawings, they are inserted during the building process; They are necessary for tunnel forming. There are openings between the O parts and part P, they should be closed with triangle shape parts (they forming on this way the sides of the left and right tunnel). That is marked on the picture with red arrows. There are also openings (left and right ) between the parts O, D, H and F – they are on the picture circled with yellow. That openings should be closed with a part what is shown on the next picture (a trapezoid, whose bottom edge is lowered to 45 *, that edge comes on the part O)

[Eci]

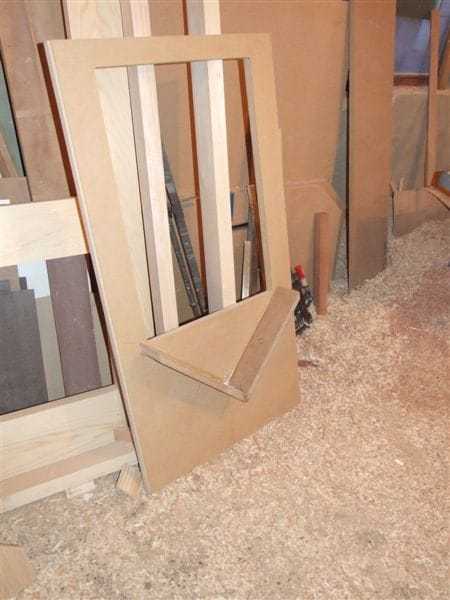

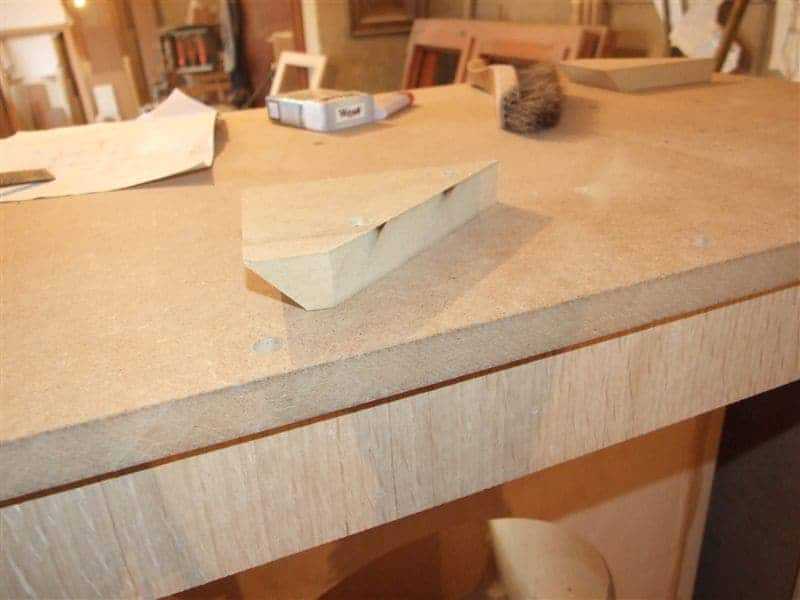

Deo koji zatvara O,D,H,F - žuti krug

The part which closes the openings between parts O, D, H and F – yellow circle

[Eci]

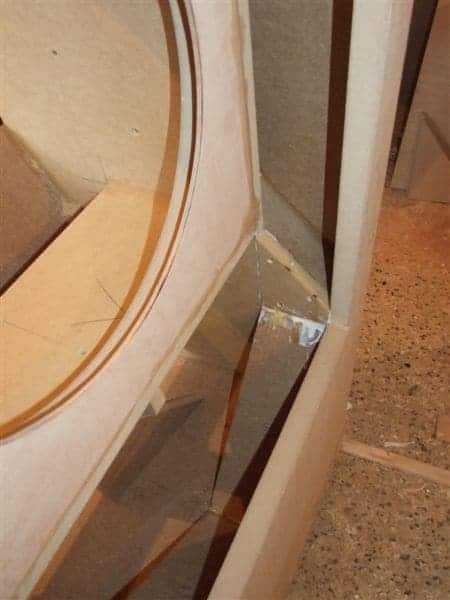

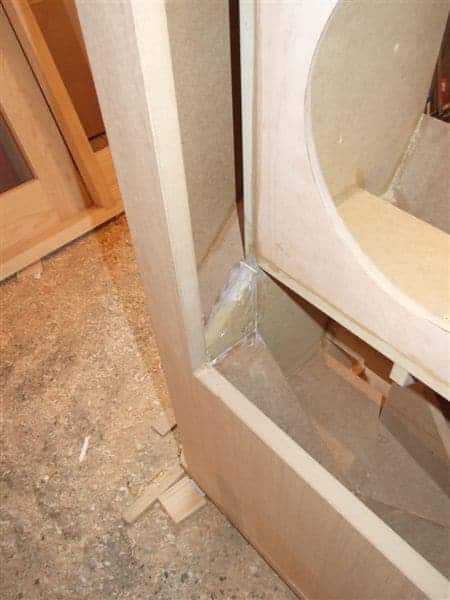

Deo zalepljen desno..

That part glued on right side..

[Eci]

.. Pa levo..

and left side

[Eci]

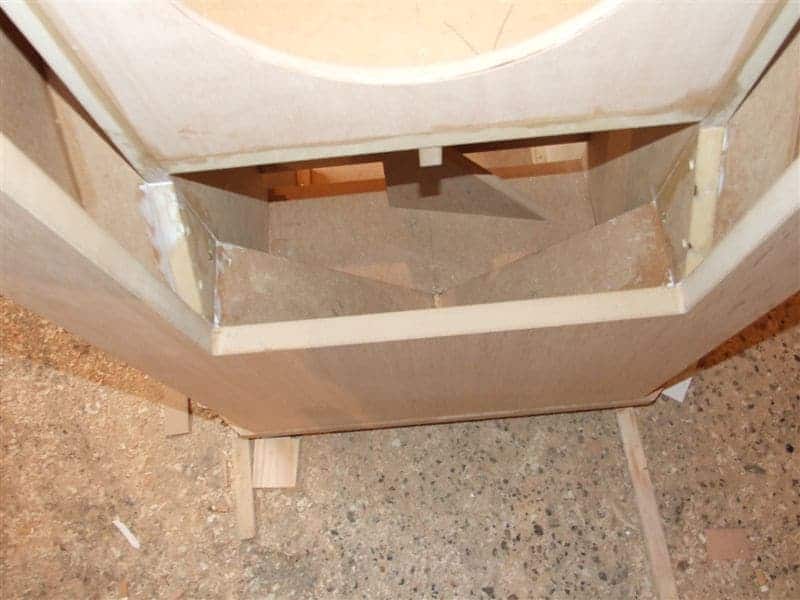

Pogled od gore

View from above
